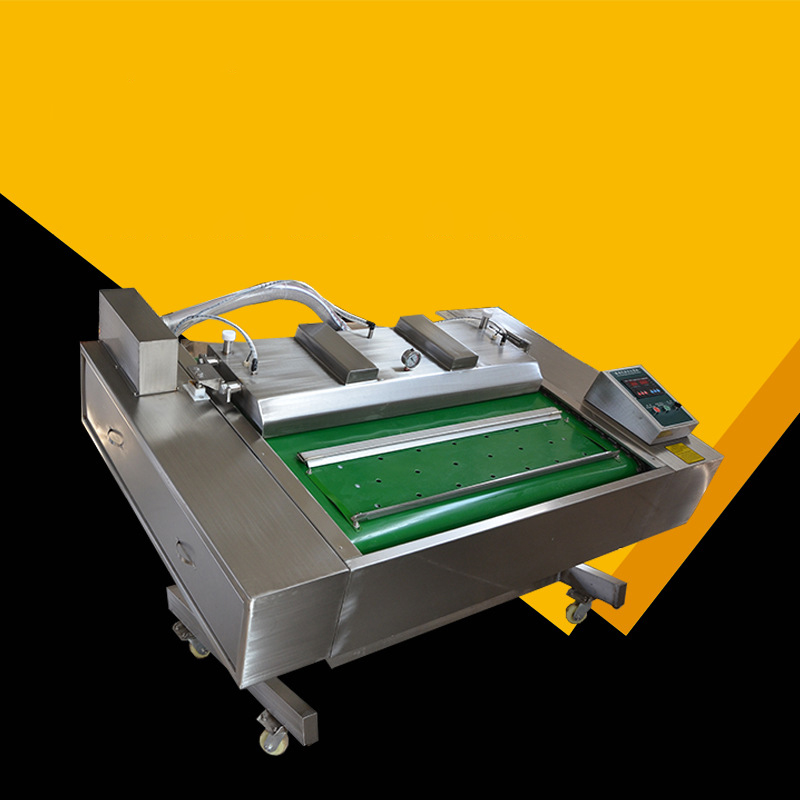

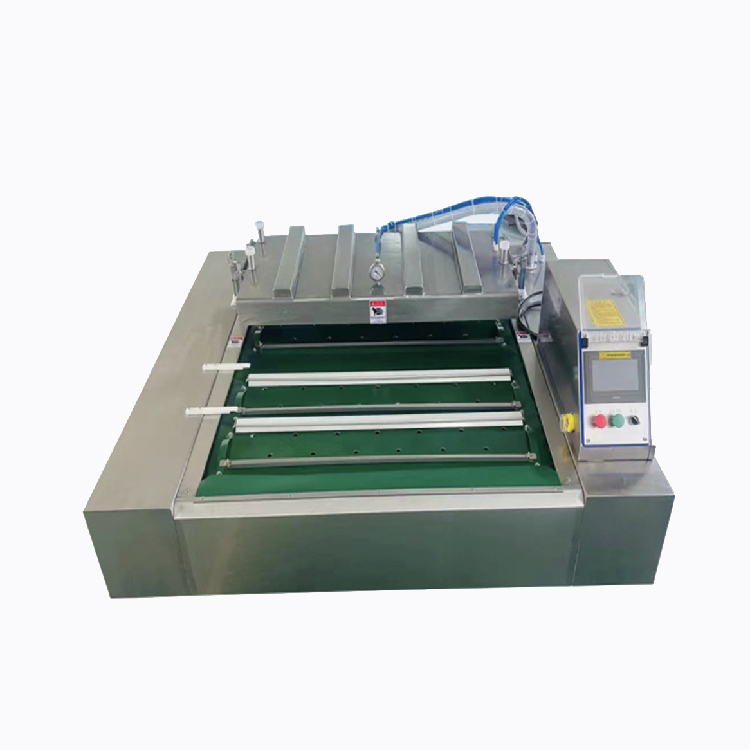

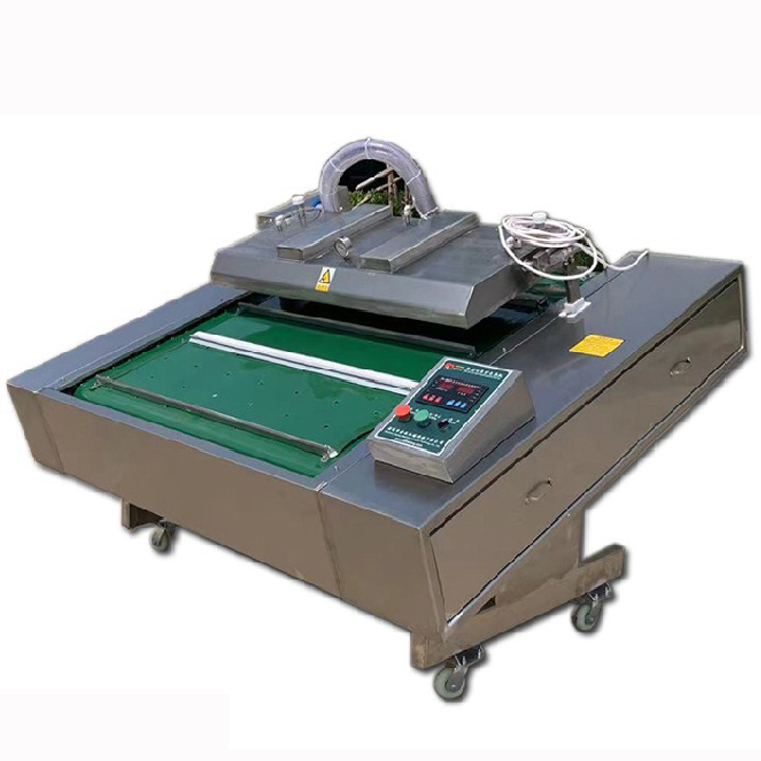

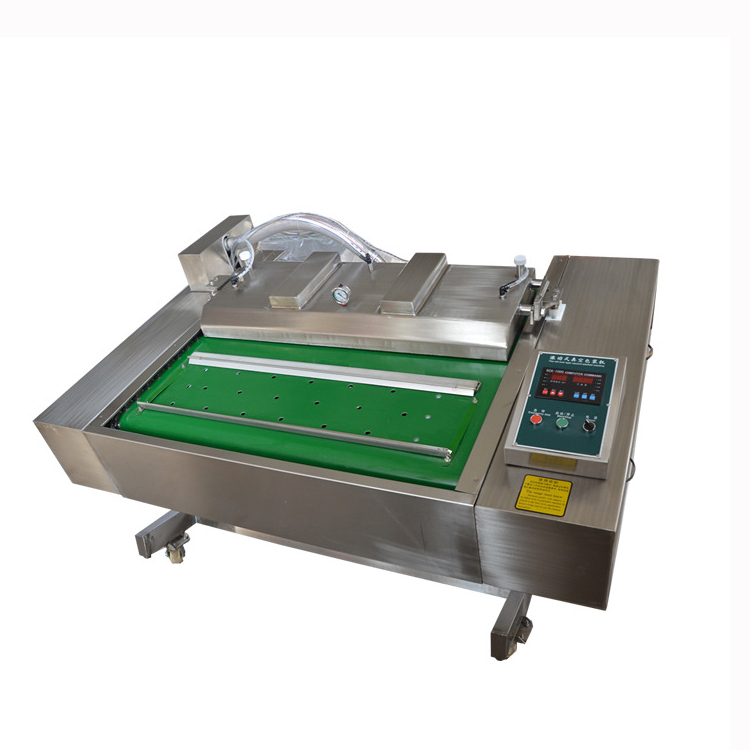

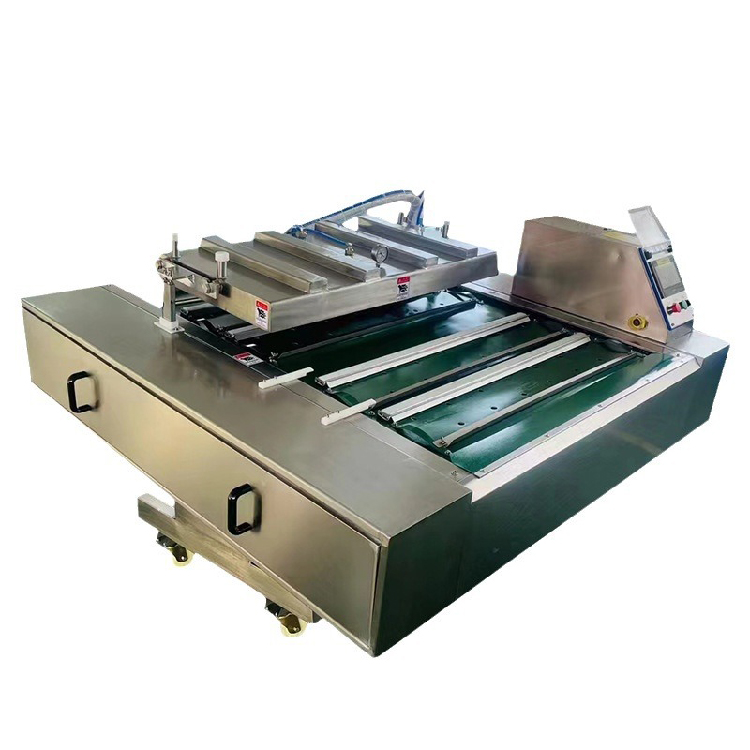

DZ-1100 Industrial Vacuum Sealing Packing Machine
1)Adopted with German BS RA0202D vacuum pump or German BS RA0100F vacuum pump
2)Imported wide-angle chain form Italy
3)Equipped Schneider Electrical
4)Frame is made of 304 stainless steel, the thickness of vacuum chamber is 8mm
5)Conveyor belt is imported from Netherlands
6)Water-proof computer controlled panel
automatic industrial rolling bag mask vacuum sealer machine/vacuum packaging machine/high quality food sealer packing machine
all the machine of our factory adopt food grade 304 stainless steel.
The touch screen is Taiwan brand weinview.
IDEC PLC. It is easy to seat and read all the data.They are precise,stable. They are easy for
different level user.
To pack liquid products,the pack table can be tilted 0-30 degree

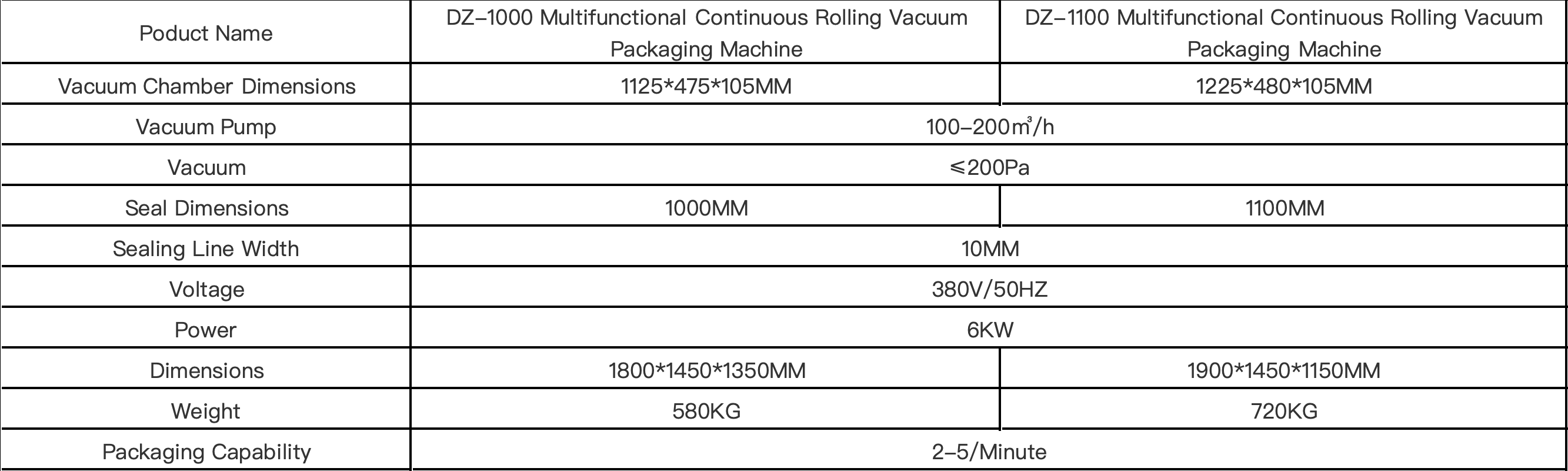

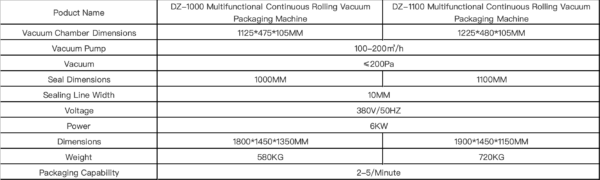

| Poduct Name | DZ-1100 Multifunctional Continuous Rolling Vacuum Packaging Machine |
| Vacuum Chamber Dimensions | 1225*480*105MM |
| Vacuum Pump | 100-200㎥/h |
| Vacuum | ≤200Pa |
| Seal Dimensions | 1100MM |
| Sealing Line Width | 10MM |
| Voltage | 380V/50HZ |
| Power | 6KW |
| Dimensions | 1900*1450*1150MM |
| Weight | 720KG |
| Packaging Capability | 2-5/Minute |

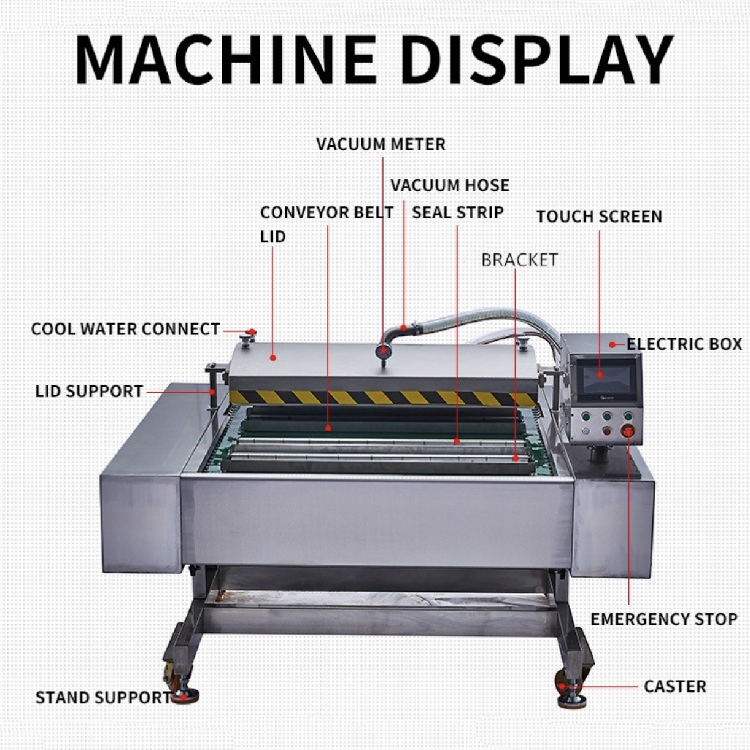

1.304SS BODY AND MAN FRIENDLY DESIGN
food grade 304SS for machine body.it’s resistant for corrosion/rust, and durable under heavy environment

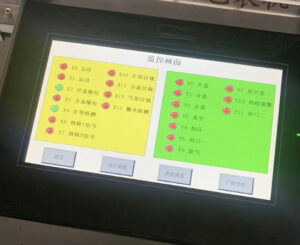

2.JAPAN IDEC PLC
use IDEC PLC + WeinView TOUCH SCREEN It is easy to set and read all the parameter. They are precise, stable. They are easy for entry level user.

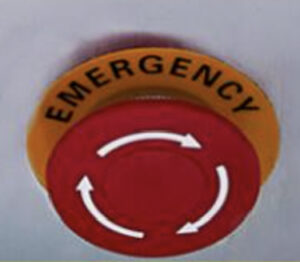

3.EMERGENCY STOP
USER CAN QUICKLY PRESS IT IN CASE of any urgency

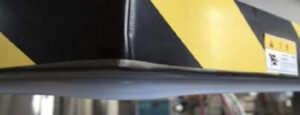

4.high QUALITY SEAL CIRCLE
The seal circle is V-shape silicone material with high temperature resistant
5.MOVING SYSTEM
the machine will move conveyor forward after one packing cycle continuously

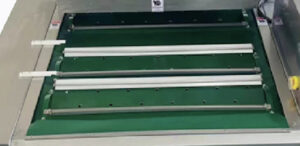

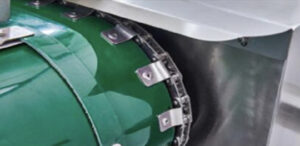

6.CONVEYOR BELT
we use high quality food grade conveyor belt. it can move continuously，easy to loose the conveyor belt to clean.
